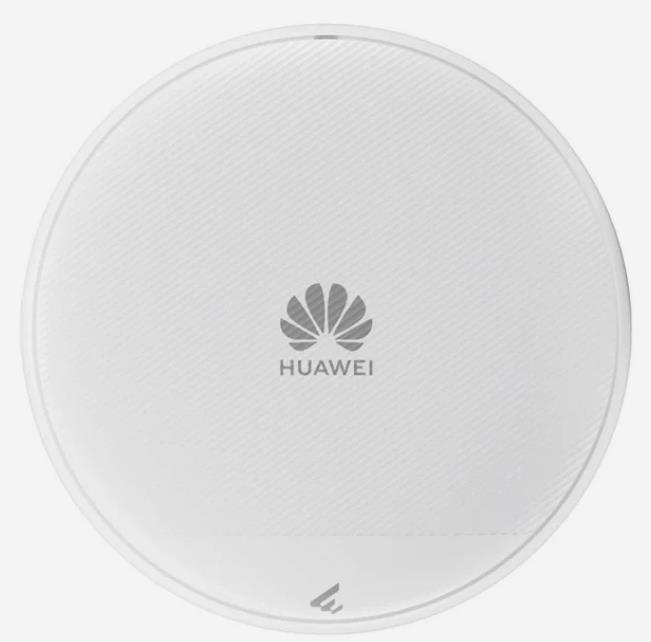

The Huawei AP371 is a next-generation indoor access point (AP) compliant with Wi-Fi 7 (802.11be), designed to deliver high-speed wireless connectivity for small to medium-sized enterprises.

Key Specifications:

•


  Wireless Standards:





  • 2.4 GHz: 802.11b/g/n/ax/be


  • 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be


•


  Frequency Bands:





  • 2.4 GHz and 5 GHz dual-band support


•


  MIMO and Spatial Streams:





  • 2.4 GHz: 2×2 MIMO


  • 5 GHz: 2×2 MIMO


  • Total: 4 spatial streams


•


  Maximum Data Rate:





  • Up to 3.57 Gbps


•


  Antenna:





  • Built-in smart antennas


  • 2.4 GHz gain: 4 dBi per chain (peak), 1 dBi combined


  • 5 GHz gain: 5 dBi per chain (peak), 3 dBi combined


•


  Interfaces:





  • 1 × 100M/1000M/2.5G auto-sensing Ethernet port (RJ45) supporting PoE input


  • 1 × 12V DC power input


  • 1 × IoT terminal port (USB, currently unavailable; future support via software upgrade)


•


  Power Supply:





  • PoE: IEEE 802.3af/at


  • DC: 12V ± 10%


•


  Power Consumption:





  • Maximum: 13.6 W


•


  Dimensions and Weight:





  • Diameter: 180 mm


  • Height: 35 mm


  • Weight: 0.47 kg (without packaging)


•


  Operating Environment:





  • Temperature: –10°C to +50°C


  • Humidity: 5% to 95% (non-condensing)


  • Altitude: –60 m to +5000 m


•


  Additional Features:





  • Built-in Bluetooth Low Energy (BLE) 5.4


  • Supports 3G/LTE filter (ACC)


  • USB port for IoT applications (future support via software upgrade)

Installation Options:

• Supports wall, ceiling, and T-rail mounting

Compliance and Certifications:

• Meets various international standards for safety and performance

The Huawei AP371 is ideal for enterprises seeking advanced wireless solutions with high throughput, flexible deployment options, and future-ready features.
