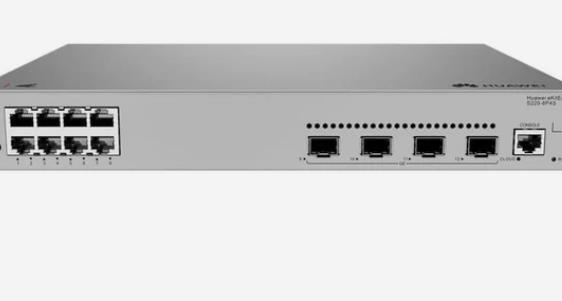

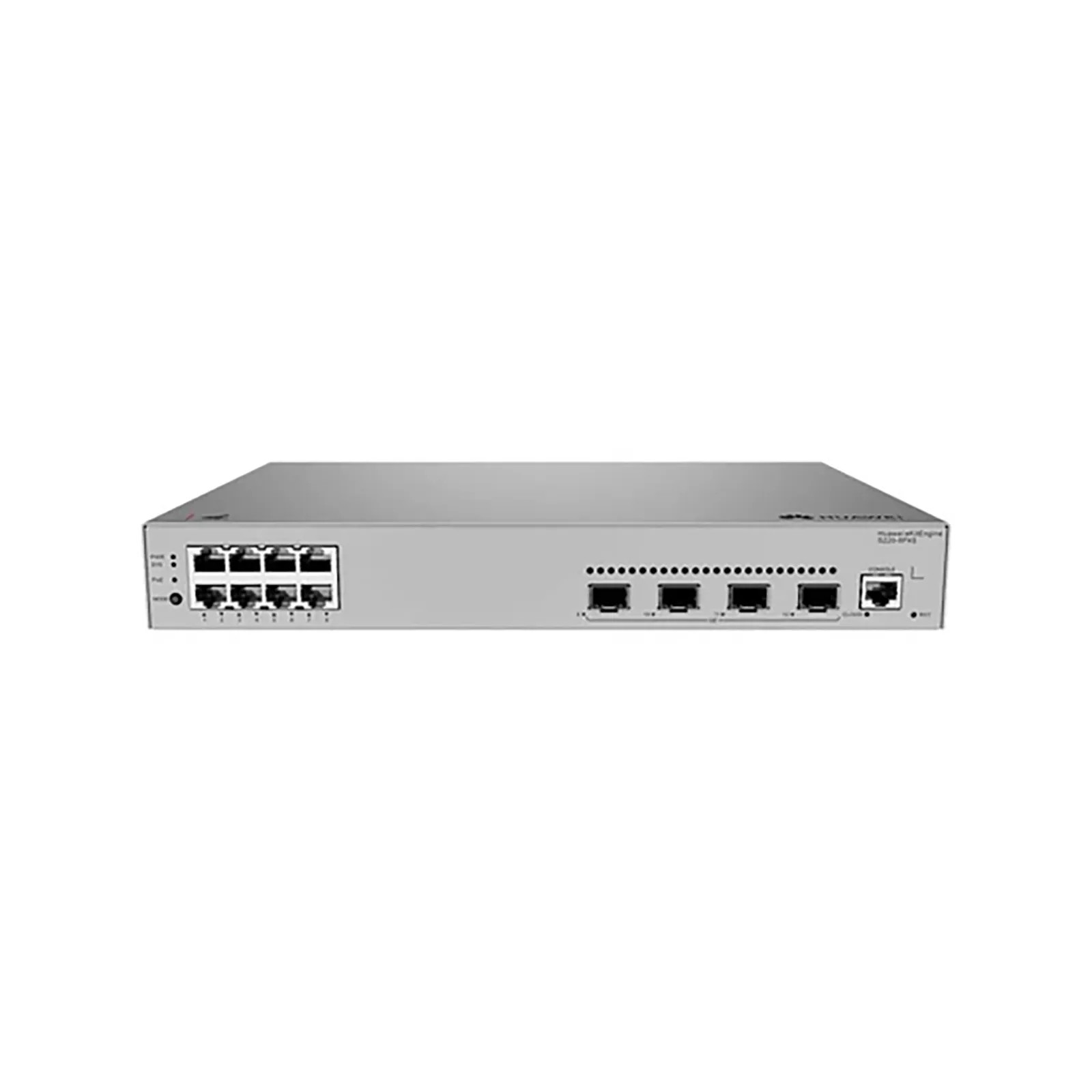

The Huawei eKit S220-8P4S is a managed Layer 2 switch designed for small to medium-sized networks, offering a combination of Gigabit Ethernet ports and Power over Ethernet Plus (PoE+) capabilities.

Key Specifications:

•


  Port Configuration:





  • 8 × 10/100/1000BASE-T Ethernet ports


  • 4 × 1GE SFP optical ports


•


  PoE+ Support:





  • Provides up to 125W total PoE power budget


  • Supports IEEE 802.3af/at standards


  • Features Fast PoE and Perpetual PoE for uninterrupted power supply to connected devices


•


  Performance:





  • Switching Capacity: 24 Gbps


  • Packet Forwarding Rate: 18 Mpps


•


  Management and Security:





  • Supports SNMPv1/v2c/v3, CLI, web-based management, and SSHv2.0


  • Offers multiple security authentication modes, including MAC address and 802.1X authentication


  • Provides mechanisms to defend against DoS attacks and user-targeted attacks


•


  Dimensions and Weight:





  • Size: 43.6 mm (H) × 320 mm (W) × 210 mm (D)


  • Weight: Approximately 3.05 kg


•


  Power Supply:





  • Built-in AC power module


  • Rated Voltage: 100 V AC to 240 V AC, 50/60 Hz


  • Maximum Power Consumption: 25.09 W (without PoE), 166.65 W (full PoE load)


•


  Operating Environment:





  • Operating Temperature: -5°C to +50°C


  • Storage Temperature: -40°C to +70°C


  • Relative Humidity: 5% to 95% (non-condensing)

Additional Features:

• Supports cloud management via the Huawei eKit App, allowing for remote configuration and monitoring, which reduces on-site deployment and operational costs.


• Offers intelligent fan speed adjustment for efficient cooling and noise reduction.


• Provides enhanced security features such as DHCP snooping, port isolation, and sticky MAC to ensure network integrity.

The Huawei eKit S220-8P4S switch is ideal for businesses seeking a reliable and secure networking solution with PoE+ capabilities, suitable for connecting devices like IP cameras, VoIP phones, and wireless access points.
