Description

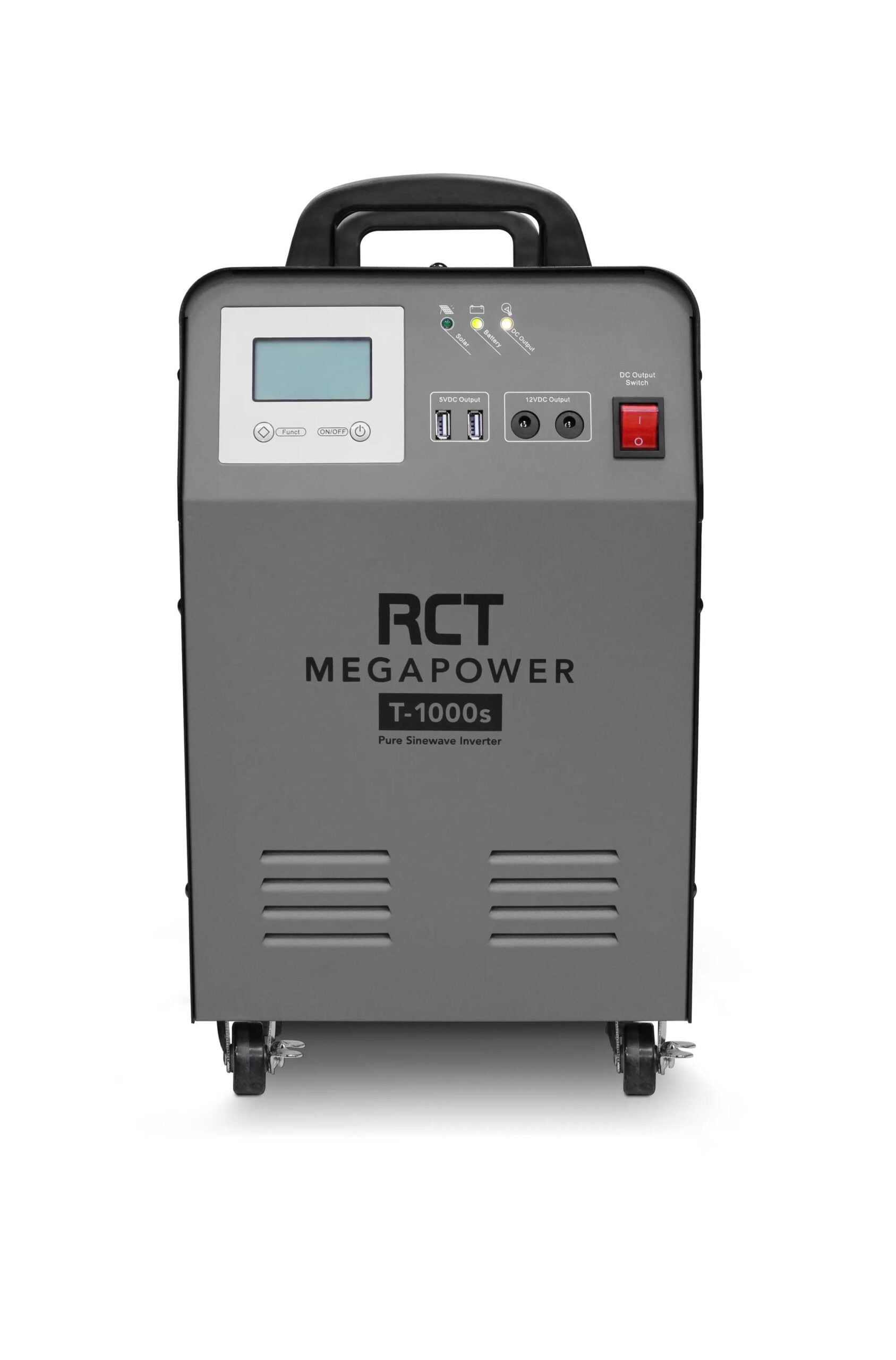

RCT MegaPower 1KVA/1000W Inverter Trolley With 1 x 100AH Battery
RCT MP-T1000S

Pure Sinewave for Sensitive Electronics & Motorised Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-in solar charger
2 x USB 5 V DC output and 2 x 12 V DC output
Battery cut off switch for safety
Pre-installed batterry

Specifications
RATED POWER: 1000 W
OUTPUT VOLTAGE: 220 VAC
OUTPUT FREQUENCY: 50 / 60 Hz
OUTPUT WAVEFORM: Pure Sine Wave

SOLAR INPUT
MAXIMUM PHOTOVOLTAIC
VOLTAGE (VDC): ? 25 V
CHARGE VOLTAGE (VDC): 10 V – 25 V
RATED CHARGE CURRENT (A): 30 A
MAXIMUM POWER (Wp): 360 Wp
VOLTAGE OVERCHARGE PROTECTION
(VDC): 14.2 V
VOLTAGE OVERCHARGE RECOVERY
(VDC): 14.0 V
VOLTAGE OF FLOATING CHARGE (VDC):
13.7 V

OUTPUT
AC OUTPUT:
2 x SA 3 Pin Socket – 230 V 50 Hz,
1000 VA / 1000 W Max. (Combined)
USB OUTPUT:
2 x USB Type A Port – 5 VDC 2 A Max.
DC OUTPUT:
2 x 12 V DC Port 2 A Max.
BATTERY TYPE:
1 x 12 DC 100 AH Deep Cycle
VRLA Gel Battery

Ports and Interfaces
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch

What’s in the box
1 x RCT MP-T1000S

Warranty:
1 Year Warranty on Inverter
6 Months warranty on Battery

Please note:
This product is ideal for stage 1 & stage 2 load shedding.
The Battery can take up to 12 hours to fully charge. It is advised that this unit is not used during stages 4 and higher as the battery would not be fully charged.
